Cat 6A Patch Cord with 5.2mm Diameter 750+ Insertion Cycles and 500 MHz Performance for High-Density Networking
Ürün ayrıntıları:
| Marka adı: | Commscope |
| Model numarası: | PC-C6AU-LSB1-WH-3M |
| Belge: | PC-C6AU-LSB1-WH .pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | Negotiate |
| Ambalaj bilgileri: | KUTU |
| Teslim süresi: | Envantere dayalı |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Proje/Parti ile Tedarik |
|
Detay Bilgi |
|||
| ANSI/TIA Sınıfı: | 6A | Kablo tipi: | U/UTP (korumasız) |
|---|---|---|---|
| İletken tipi: | sert tel | Arayüz, konnektör A: | RJ45 fişi |
| Arayüz özellikleri: | Standart | konnektör A arayüzü: | RJ45 fişi |
| Uzunluk: | 2 m | ||
| Vurgulamak: | 5.2mm diameter Cat 6A Patch Cord,750+ insertion cycles Ethernet Cable,500 MHz Network Cable |
||
Ürün Açıklaması
Cat 6A Patch Cord with 5.2mm Diameter 750+ Insertion Cycles and 500 MHz Performance for High-Density Networking

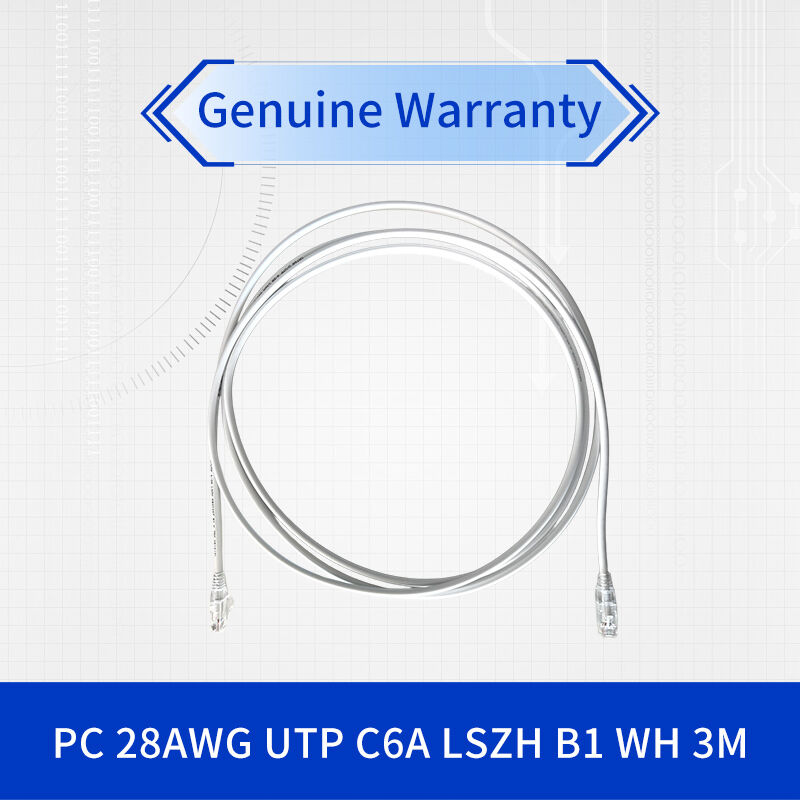

CommScope 28AWG CAT6A U/UTP LSZH Network Patch Cord
High-Density Connectivity Solution for Demanding Network Environments
Executive Summary
Engineered for superior performance in space-constrained installations, this Category 6A networking cable combines advanced transmission capabilities with a compact 28AWG design. The U/UTP construction and LSZH jacket material provide reliable, safe connectivity for modern enterprise networks and data center applications.
Critical Performance Features
Space-Efficient Design
28AWG slim profile reduces cable bulk by 25-30% compared to standard Cat6A cables, enabling higher port density and improved airflow management.
Enhanced Safety Compliance
LSZH jacket meets stringent B1 flammability rating (GB/T 31247), minimizing smoke and toxic emission in fire scenarios.
Technical Architecture

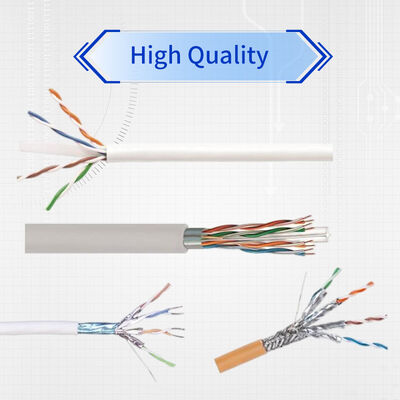

This networking cord utilizes precision-engineered 28AWG stranded copper conductors arranged in four balanced twisted pairs. The U/UTP (Unshielded Twisted Pair) design incorporates precise twist ratios and high-quality dielectric materials to maintain signal integrity while minimizing crosstalk and electromagnetic interference.
Transmission Methodology
The cable employs advanced return loss optimization and impedance stability techniques to support 10GBASE-T transmission at 500 MHz bandwidth. The balanced transmission line design ensures consistent performance across all four pairs, while the optimized pair geometry minimizes alien crosstalk in high-density installations.

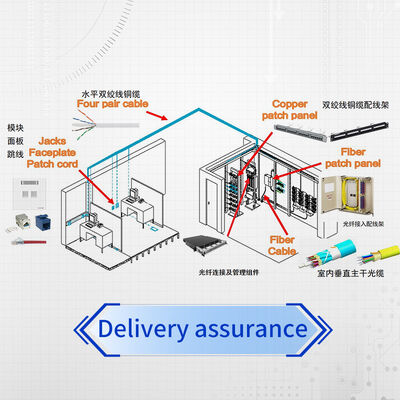

Deployment Scenarios
Data Center Applications
- Top-of-rack switching connectivity
- Server-to-switch interconnections
- High-density patch panel deployments
- Storage area network connections
Enterprise Infrastructure
- Workstation to network outlet connections
- Telecommunications room cross-connects
- IP phone and VoIP system installations
- Wireless access point connectivity
Specialized Environments
- Healthcare network systems
- Educational institution networks
- Government and military facilities
- Transportation and aviation networks
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Electrical Performance | Transmission Standard | ANSI/TIA-568.2-D Cat6A, ISO/IEC 11801 Class Ea |
| Physical Construction | Conductor Size | 28AWG Stranded Copper |
| Cable Diameter | 5.2 mm | |
| Connector System | Interface Type | RJ45 (8P8C) T568B |
| Durability Rating | 750+ Insertion Cycles | |
| Environmental | Operating Temperature | -10°C to +60°C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
Comparative Advantages
Versus Standard Cat6A Cables
This 28AWG networking cord provides identical electrical performance to bulkier 23AWG alternatives while offering significantly improved cable management capabilities. The reduced diameter allows for higher density installations without compromising transmission quality.
Safety Superiority
Unlike standard PVC-jacketed cables, the LSZH construction eliminates halogenated materials that can produce corrosive and toxic gases during combustion, providing critical safety advantages in enclosed spaces and public facilities.
Durability Enhancement
The 750+ insertion cycle rating exceeds typical industry standards, ensuring long-term reliability in environments requiring frequent reconfiguration, such as data centers and laboratory settings.
Expert Support & Services
CommScope provides comprehensive technical support for this high-performance networking cable, including installation guidance, performance validation, and compatibility verification. Our global support network ensures rapid response to technical inquiries and deployment challenges.
Common Inquiries
What maximum distance does this Cat6A patch cord support for 10GbE applications?
This high-quality Cat6A networking cable delivers full 10 Gigabit Ethernet performance up to 30 meters, making it ideal for typical data center and enterprise patching applications where shorter runs predominate.
Is the 28AWG conductor suitable for Power over Ethernet applications?
Yes, this network patch cord is engineered to support IEEE 802.3bt Type 4 PoE++ applications, delivering up to 90W of power while maintaining optimal data transmission characteristics within its specified length range.
What certifications does this networking cable carry?
This Cat6A U/UTP cable complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class Ea, and meets GB/T 31247 flammability requirements. It also satisfies RoHS environmental standards for hazardous substance restrictions.
Installation Guidelines & Precautions
- Maintain minimum bend radius of 4x cable diameter during installation
- Avoid excessive tension during pulling (maximum 25 lbs / 110 N)
- Ensure proper strain relief at connection points
- Verify compatibility with specific equipment ports before installation
- Store in controlled environments when not in use
- Use appropriate cable management accessories to prevent stress
- Test end-to-end performance after installation
- Follow local electrical codes and regulations
