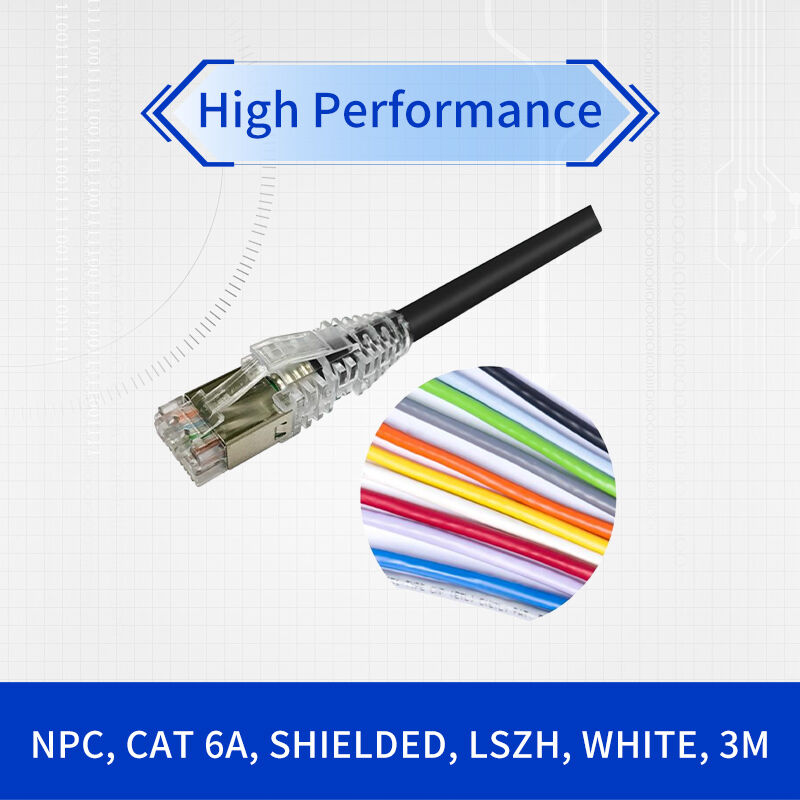

NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
Ürün ayrıntıları:
| Marka adı: | Commscope |
| Model numarası: | NPC6ASZDB-WT003M |
| Belge: | NPC6ASZDB.pdf |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | Negotiate |
| Ambalaj bilgileri: | KUTU |
| Teslim süresi: | Envantere dayalı |
| Ödeme koşulları: | T/T |
| Yetenek temini: | Proje/Parti ile Tedarik |
|
Detay Bilgi |
|||
| ANSI/TIA Kategorisi: | 6A | Kablo tipi: | S/FTP (engellendi) |
|---|---|---|---|
| İletken Tipi: | Çok telli büküm | Konektör a: | RJ45 fişi |
| Konektör özellikleri, Konektör A: | Standart | Konektör B: | RJ45 fişi |
| Bağlantı özellikleri, konnektör B: | Standart | Uzunluk: | 3m |
| Vurgulamak: | Shielded Cat6E Ethernet cable,10Gbps RJ45 patch cord,High-speed Cat6E network cable |
||
Ürün Açıklaması
NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
NPC6ASZDB Cat6E Shielded Network Patch Cord - Premium Ethernet Connectivity
Performance Highlights
- Enhanced EMI/RFI shielding technology
- 10Gbps data transmission capability
- Low smoke zero halogen safety jacket
- High-density deployment optimized
- Industrial-grade durability
- Global compliance certifications
Technical Specifications

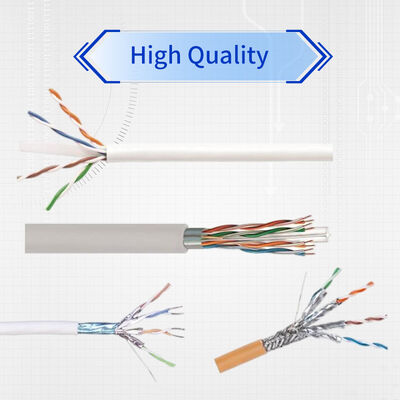

Physical Properties
Cable Type: SFTP Cat6E
Jacket Material: LSZH
Diameter: 5.84mm
Colors: 9 options available
Performance Data
Data Rate: Up to 10Gbps
Frequency: 500MHz
Voltage Rating: 300V
Impedance: 100Ω ±15%

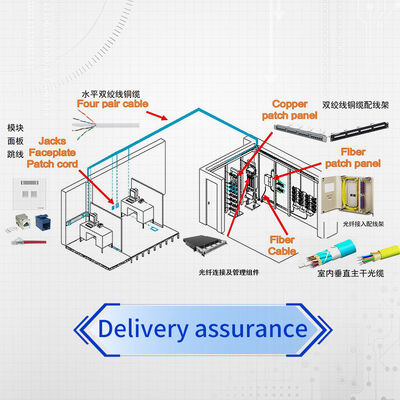

Applications & Deployment
This high-performance Cat6E patch cord is engineered for critical network infrastructure including:
- Data Centers: Server connectivity and switch interconnections
- Enterprise Networks: Workstation to wall plate connections
- Industrial Automation: Factory floor networking
- Healthcare Facilities: Medical equipment connectivity
- Educational Institutions: Classroom and lab deployments
Compliance & Certifications
| Standard | Description | Compliance |
|---|---|---|
| ANSI/TIA-568.2-D | Category 6A Performance | Fully Compliant |
| ISO/IEC 11801 | Class EA Specifications | Fully Compliant |
| UL 1863 | Safety Certification | Certified |
| IEEE 802.3b1 | Type 4 Compatibility | Compatible |
Installation Guidelines
Critical Installation Parameters
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for shielded systems
- Use appropriate cable management to avoid stress on connectors
- Verify termination with certified test equipment
- Follow local electrical codes and regulations
